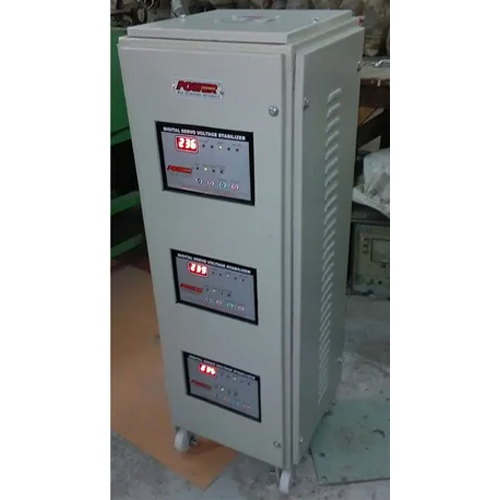

Three Phase Voltage Stabilizer

Three Phase Voltage Stabilizer Specification

Output Current
Up to rated load capacity

Input Voltage
340V - 470V AC

Output Voltage
415V AC 1%

Efficiency
High

Frequency (MHz)
50 Hz

Phase
Three Phase

Current
43A maximum

Weight
approx. 160 kg

Ambient Temperature
0C to 50C

Degree of Protection
IP 21

Control System
Microcontroller Based

Usage
DBW

Insulation Resistance
> 2 M at 500V DC

Design
Floor Mounted, Enclosed Cabinet

Voltage Protection
Under/Over Voltage Protection

Display
Analog

Dimension (L*W*H)
1000 x 600 x 1350 mm

Rated Power
30 kVA

Current Type
AC

Waveform Distortion
Nil (Sinusoidal Output)

Product Type
Three Phase Voltage Stabilizer

Relative Humidity
Up to 95% (non-condensing)

Overload Protection
Yes, Auto Cutoff

Transformer Type
Copper Wound

Harmonic Distortion
Negligible

Regulation Type
Servo Controlled

EMI/RFI Suppression
Optional

Cooling Method
Air Cooled

Input Frequency Range
47-53 Hz

Bypass Arrangement
Manual/Automatic Bypass Option

Mounting Type
Floor Standing

Correction Speed
20-50 V/sec

Surge Protection
Available

Three Phase Voltage Stabilizer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

Three Phase Voltage Stabilizer About

Three-phase voltage stabilizer has a significant role in controlling voltage supply levels for commercial and industrial equipment. An offered voltage stabilizer is effective in safeguarding electrical equipment against power surges and overload conditions to improve performance and to extend the service life of those equipment. Three phase voltage stabilizer serves as a reliable option to maintain consistency of voltage supply, especially in the areas where fluctuation in power is a common occurrence. Wide input voltage range, automatic output voltage adjusting function, electrical surge, and power overload arrangement are the key aspects of this product.

Precision Voltage Regulation

Equipped with a fast correction speed of 20-50 V/sec, our Three Phase Voltage Stabilizer ensures timely voltage adjustments and stable output, safeguarding sensitive machinery and essential equipment from voltage fluctuations. The microcontroller-based control system, coupled with a copper wound transformer, offers high performance and negligible harmonic distortion, making it suitable for demanding industrial environments.

Robust Protection Features

This stabilizer comes with comprehensive protection measures, including surge protection, overload protection, under/over voltage protection, and optional EMI/RFI suppression. The auto cutoff function and IP 21 cabinet protection further enhance safety in varied operating conditions, while the manual or automatic bypass arrangement ensures uninterrupted power supply during maintenance or faults.

Flexible Installation and Reliable Operation

Designed for floor mounting, the Three Phase Voltage Stabilizer fits seamlessly into industrial spaces. Its air-cooled mechanism allows operation in ambient temperatures up to 50C, and at relative humidity levels up to 95% (non-condensing), providing reliable service across diverse Indian climates, with easy-to-read analog display gauges for monitoring output voltage and current.

FAQ's of Three Phase Voltage Stabilizer:

Q: How does the Three Phase Voltage Stabilizer maintain stable output in fluctuating voltage conditions?

A: The stabilizer utilizes a servo-controlled regulation system supported by a microcontroller that rapidly detects voltage changes. By adjusting at 20-50 V/sec, it ensures the output remains at 415V AC (1%), effectively safeguarding connected equipment.

Q: What is the recommended usage for this voltage stabilizer?

A: This model is engineered for three-phase industrial and commercial applications where stable voltage is critical, such as for DBW panels, machinery, and process automation. It efficiently handles up to a 30 kVA load with high operational reliability.

Q: When should I choose the manual or automatic bypass arrangement?

A: Use the manual bypass for scheduled maintenance or extended service while you need to keep power flowing. The automatic bypass is beneficial during fault conditions, allowing for seamless transition without power interruption to your equipment.

Q: Where should the stabilizer be installed for optimal performance?

A: This floor-mounted unit is best installed indoors on a level surface, in an environment within the specified temperature and humidity range (0C-50C, up to 95% RH non-condensing), and away from direct exposure to water or corrosive substances.

Q: What benefits does copper-wound transformer technology provide?

A: Copper wound transformers offer superior efficiency, better conductivity, and durability compared to alternatives. This enhances system longevity and ensures consistent voltage regulation even under heavy load conditions.

Q: How does the stabilizer protect my equipment from electrical surges and overloads?

A: Integrated surge protection and overload protection features detect abnormal conditions and immediately disconnect the output via auto cutoff, minimizing the risk of damage to connected devices.

Q: What is the process for monitoring the stabilizer's performance?

A: The stabilizer is fitted with an analog display panel which makes it easy to monitor output voltage and current in real time. Regular observation of these indicators is recommended to ensure the stabilizer is functioning within its designated parameters.
