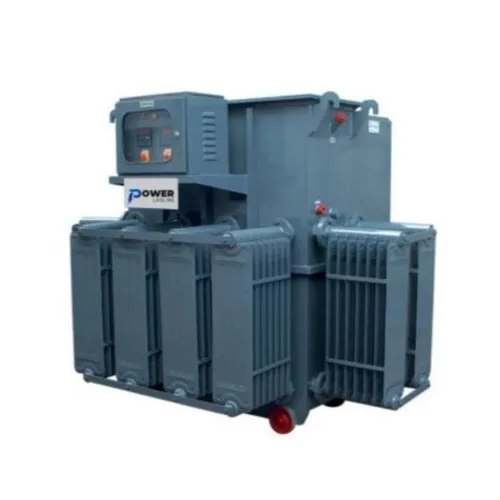

200 KVA L. T. Automatic Voltage Stabilizer

200 KVA L. T. Automatic Voltage Stabilizer Specification

Output Current
Up to 288 A

Input Voltage
340 V - 480 V (Three Phase)

Output Voltage
400 V 1% (Three Phase)

Efficiency
High

Frequency (MHz)
50 Hz

Phase
Three Phase

Current
Up to 288 A

Weight
Approx. 1380 kg

Ambient Temperature
0C to 50C

Degree of Protection
IP 21

Control System
Microprocessor Based

Usage
DBW

Insulation Resistance
>2 Mega Ohm at 500 V DC

Design
Heavy Duty Floor Mounting

Voltage Protection
Overload & Short Circuit Protection

Display
Analog

Dimension (L*W*H)
2100 mm x 900 mm x 1600 mm

Rated Power
200 KVA

Current Type
AC

Waveform Distortion
Nil

Product Type
Automatic Voltage Stabilizer

Operating Humidity
Up to 95% RH (Non-condensing)

Altitude
Up to 1000 m above sea level

Indicating Lamps
Provided for Input/Output On-Off

Servicing Accessibility
Front and Rear Door Access

Testing
Routine & Type Tested

Minimum Load Capability
Up to 20% of Rated Load

Phase Sequence Indication
Provided

Mounting
Floor Mounted with Lifting Hooks

Noise Level
<55 dB

Transformer Type
Copper Wound

Bypass Arrangement
Manual / Automatic on request

Regulating Speed
About 40 V/sec

Conformance
IS 9815 / IEC Standards

Paint Finish
Powder Coated

Cooling
Air Cooled / Oil Cooled Option

Alarm System
Audio-Visual for Faults

Overvoltage Protection
Provided

Input / Output Connection
Bus Bar / Cable Terminal

Enclosure Material
CRCA Sheet Steel

Undervoltage Protection
Provided

200 KVA L. T. Automatic Voltage Stabilizer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 200 KVA L. T. Automatic Voltage Stabilizer

Operated by three phase power source, 200 KVA L. T. Automatic Voltage Stabilizer is perfect choice for maintaining balanced supply of voltage. It supports phase-to-phase input voltage and output voltage to suit specific application requirement. Offered voltage stabilizer has extensive application in hospitals, high rise structure, data center and telecommunication industry. 200 KVA L. T. Automatic Voltage Stabilizer possesses voltage regulation system to maintain consistency in voltage. Apart from its wide input voltage range, it has automatic power cut-off and restarting function. Light in weight, this voltage stabilizer can be set up quickly.

Superior Voltage Regulation

This stabilizer is engineered to maintain precise output voltage of 400 V (1%) even with fluctuating inputs, ensuring the safety of sensitive equipment. Equipped with a fast regulation speed of about 40 V/sec, it optimally compensates for rapid voltage variations, preventing electrical disruptions and equipment damage.

Designed for Demanding Environments

Offering both air-cooled and oil-cooled options, the enclosure is made from durable powder-coated CRCA sheet steel. With a high level of protection (IP 21), it withstands ambient temperatures up to 50C and operating humidity up to 95% RH (non-condensing), making it ideal for the challenging Indian climate.

Advanced Safety and Ease of Operation

This stabilizer features comprehensive safety systems, such as overvoltage, undervoltage, overload, and short circuit protection. Easily accessible controls, audio-visual alarms, phase sequence indicators, and manual/automatic bypass arrangements ensure straightforward operation and rapid issue notification.

FAQ's of 200 KVA L. T. Automatic Voltage Stabilizer:

Q: How does the 200 KVA L.T. Automatic Voltage Stabilizer benefit industrial operations?

A: This voltage stabilizer safeguards industrial equipment from voltage fluctuations by maintaining a stable output of 400 V (1%). Its rapid regulation speed and comprehensive protection features minimize risk of equipment failure, ensuring uninterrupted operations and reducing costly downtime.

Q: What is the installation process and where should the stabilizer be mounted?

A: The stabilizer is designed for floor mounting and comes with lifting hooks for convenient placement. It should be installed in a well-ventilated indoor area on a level surface, ideally near the primary electrical distribution point, for efficient voltage regulation and easy servicing.

Q: When is it advisable to use the air-cooled or oil-cooled option?

A: Choose the air-cooled option for standard environments with moderate temperature, while the oil-cooled model is recommended for locations with higher ambient temperatures or more demanding conditions, as it offers superior heat dissipation and longevity.

Q: How do the overvoltage and undervoltage protection systems work?

A: These systems constantly monitor input and output voltages. If an unsafe voltage is detected, the stabilizer triggers protection mechanisms and activates audio-visual alarms, isolating the load to prevent equipment damage until normal conditions resume.

Q: What are the key usage scenarios for this stabilizer?

A: This model is ideal for industrial, commercial, and export applications where three-phase voltage stability is essential to protect high-value electronic devices, heavy machinery, or sensitive production lines from voltage fluctuations, surges, and power irregularities.

Q: How accessible is the unit for routine servicing and maintenance?

A: Servicing is streamlined with both front and rear door access, allowing technicians to easily inspect, maintain, and perform routine tests on the stabilizer's internals, ensuring reliable long-term operation and minimizing maintenance downtime.
